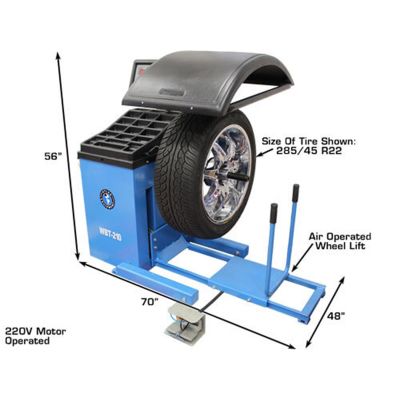

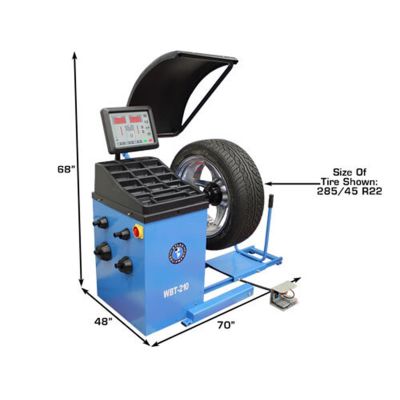

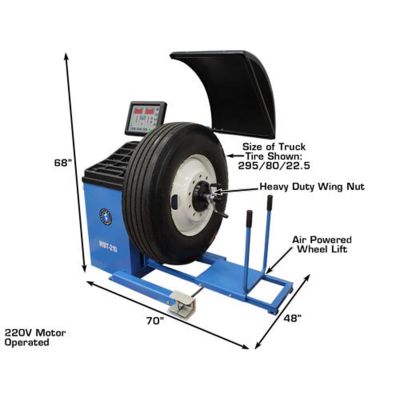

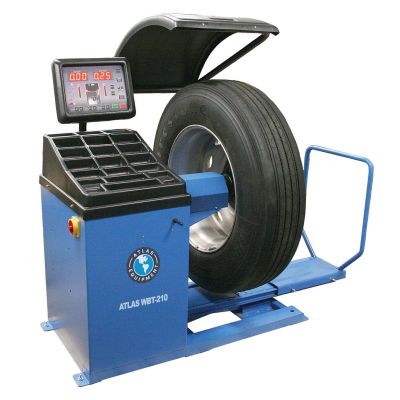

The Atlas® WBT-210 Heavy Duty Truck Wheel Balancer is engineered for versatility, durability, and performance. Built to handle everything from standard passenger car wheels to 300 lb. semi-truck tires, this balancer delivers reliable precision across a wide range of applications. It's the ideal solution for shops or fleets that service a mix of vehicles—cars, light trucks, buses, and big rigs. Featuring computer-controlled operation, static and dynamic balancing modes, and rapid optimization functions, the WBT-210 ensures fast cycle times and accurate results. The built-in pneumatic wheel lift (external air supply required) makes loading large assemblies safe and efficient. With plug-and-play electronic components, the WBT-210 is not only user-friendly but easy to maintain, saving you from costly downtime and service calls. This rugged, all-in-one balancer combines industrial-grade capability with the cost-effective value that Atlas® is known for worldwide.
| Product Features |
| • Computer-controlled spin balancer for heavy-duty applications |

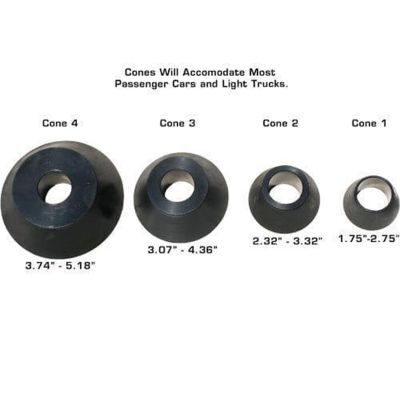

| • Includes cone sets for car, light truck, and heavy truck wheels |
| • Pneumatic wheel lift included (external air supply required) |
| • Static and dynamic balancing modes with rapid optimization (OPT) |
| • Self-diagnosing and calibrating system |
| • Operates in grams or ounces and in mm or inches |
| • Includes quick release nut, cones, spacers, pliers, and calipers |
| • No anchor-down installation required |
| Product Specifications |
| Max Tire Diameter |
47" |
| Rim Sizes (Cars and Light Trucks) |
10" - 32" |
| Rim Width |
1 1/2" - 20" |
| Shaft Size |
40mm |
| Max Wheel Weight |
440 lbs. |
| Balancing Speed |
150 rpm (Car/Light Truck), 90 rpm (Truck) |
| Data Entry |
Manual |
| Measurements |
Standard or Metric |
| Accuracy |
1g (Car/Light Truck), 10g (Truck) |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/3 HP |
| Air Requirement |
115–140 PSI (external air supply required) |
| Power Supply |
220V, 1-phase (30 amp breaker) |

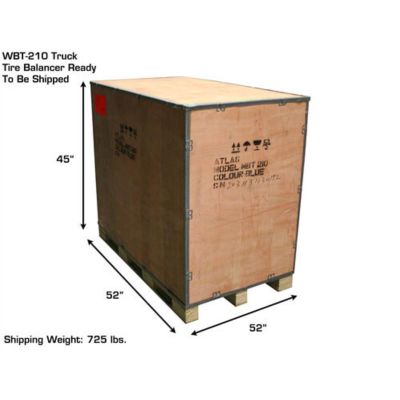

| Shipping Weight |
725 lbs. |
