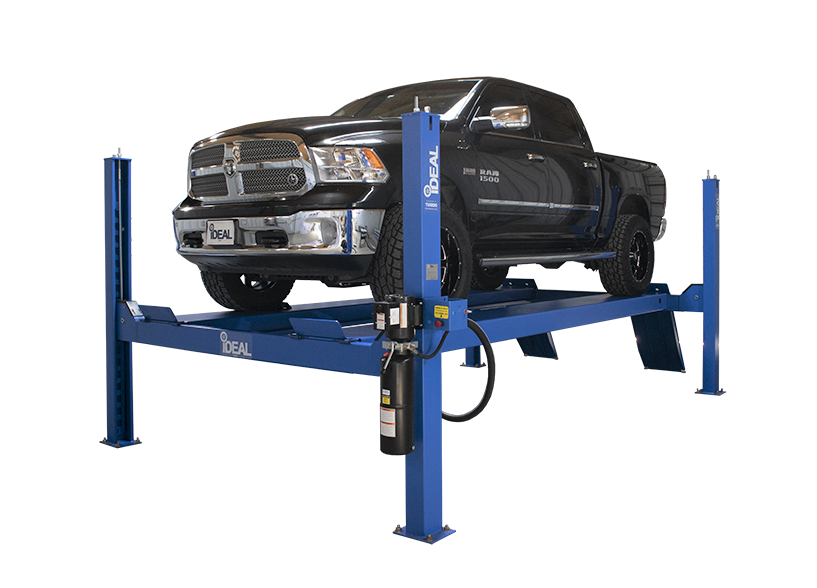

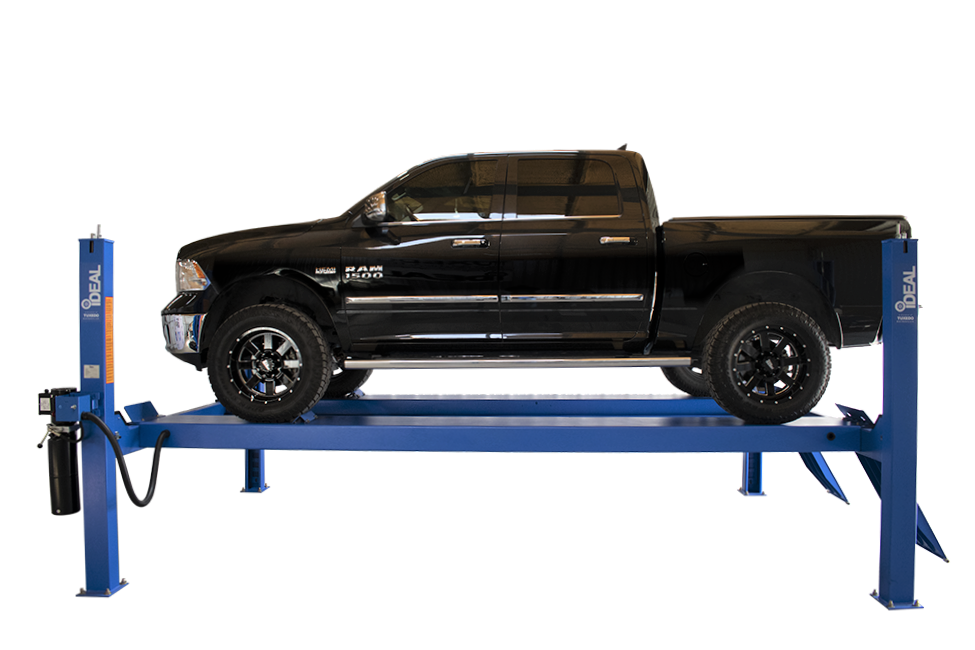

iDeal FP14KC-X 14,000 lb Four Post Service Lift
The iDeal FP14KC-X 14,000 lb Four Post Service Lift is a heavy-duty, commercial-grade lift engineered for precision, power, and performance. Designed to accommodate everything from passenger cars to full-size trucks, this model delivers unmatched versatility and strength in any professional automotive shop. With an extended runway length and a 14,000 lb lifting capacity, the FP14KC-X makes servicing large vehicles safer and easier than ever. Its smooth cable-driven design, single-point pneumatic lock release, and 18 locking height positions ensure stability, safety, and precision at every level.
Built for demanding shops, the FP14KC-X features a durable powder-coat finish, heavy-duty cable lift system, and wide 20" runways that can be adjusted for narrow or wide mounting positions. The integrated slack cable safety system and self-chocking approach ramps with nylon rollers provide superior safety and ease of use. With its reliable 220V power operation and 5-Year Structural Warranty, the iDeal FP14KC-X is the perfect combination of rugged strength, modern design, and long-term dependability.

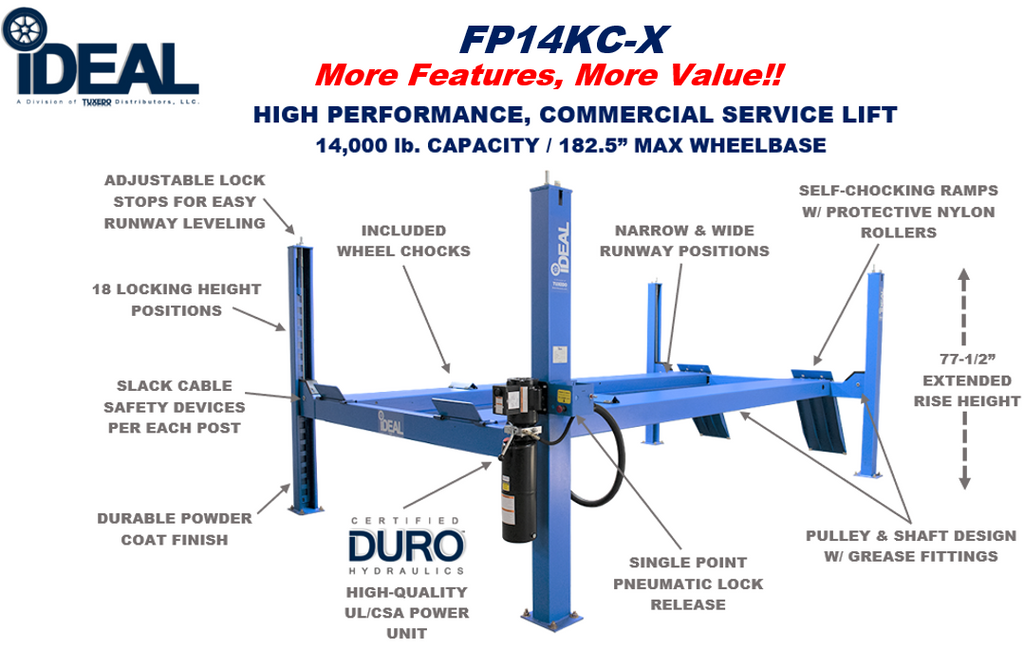

| Product Features |
-
14,000 lb lifting capacity – ideal for commercial service and heavy-duty vehicle use.
-
Durable cable-driven lift system for smooth, balanced lifting every time.
-
Extended 182.5″ wheelbase capacity – handles long trucks and vans with ease.
-
18 locking height positions – fine-tuned control and safety at multiple heights.
-
Single-point pneumatic lock release – quick and efficient operation.
-
Fully adjustable lock stops for simple runway leveling.
-

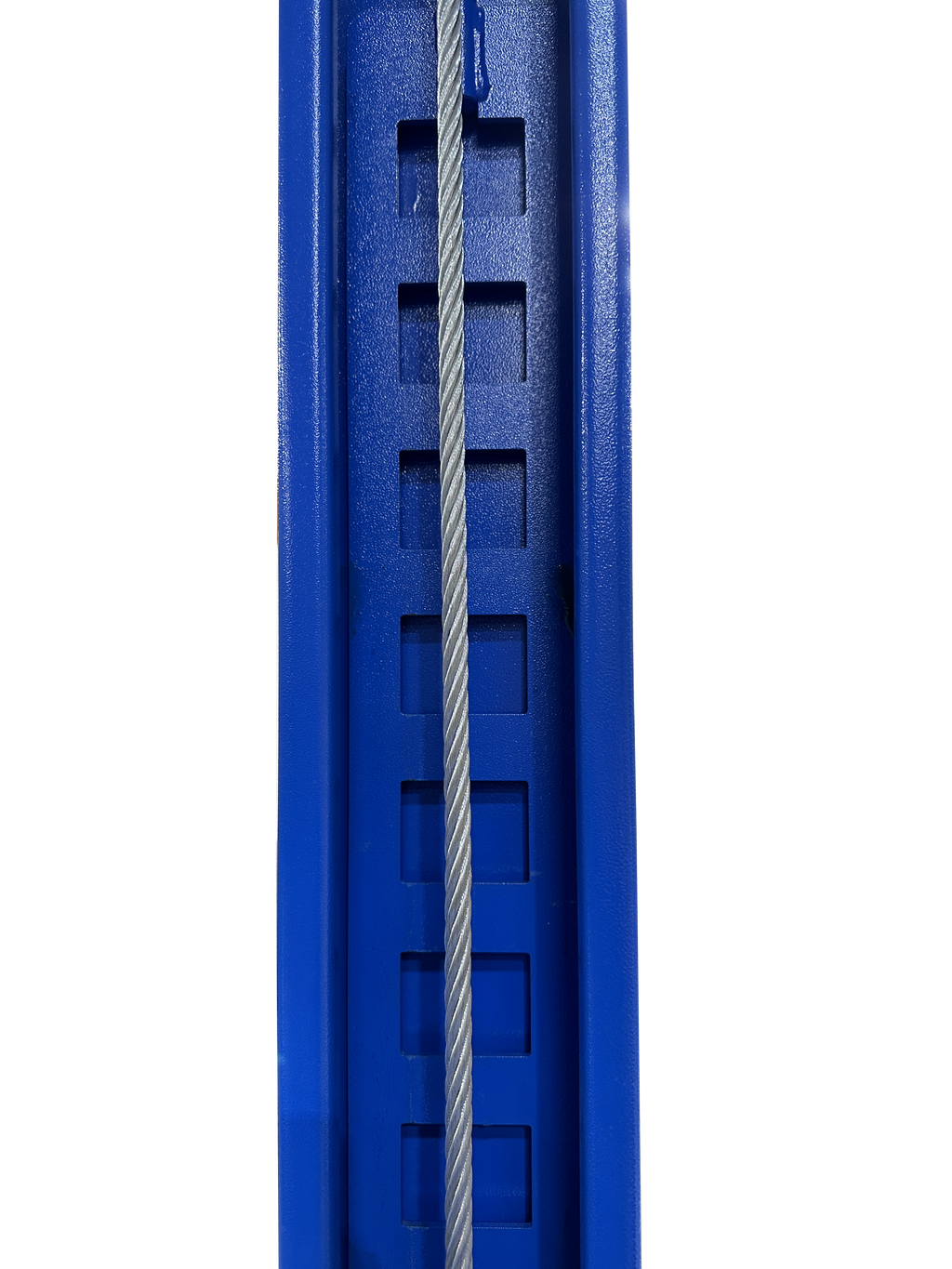

Slack cable safety devices provide extra protection during lift use.
-

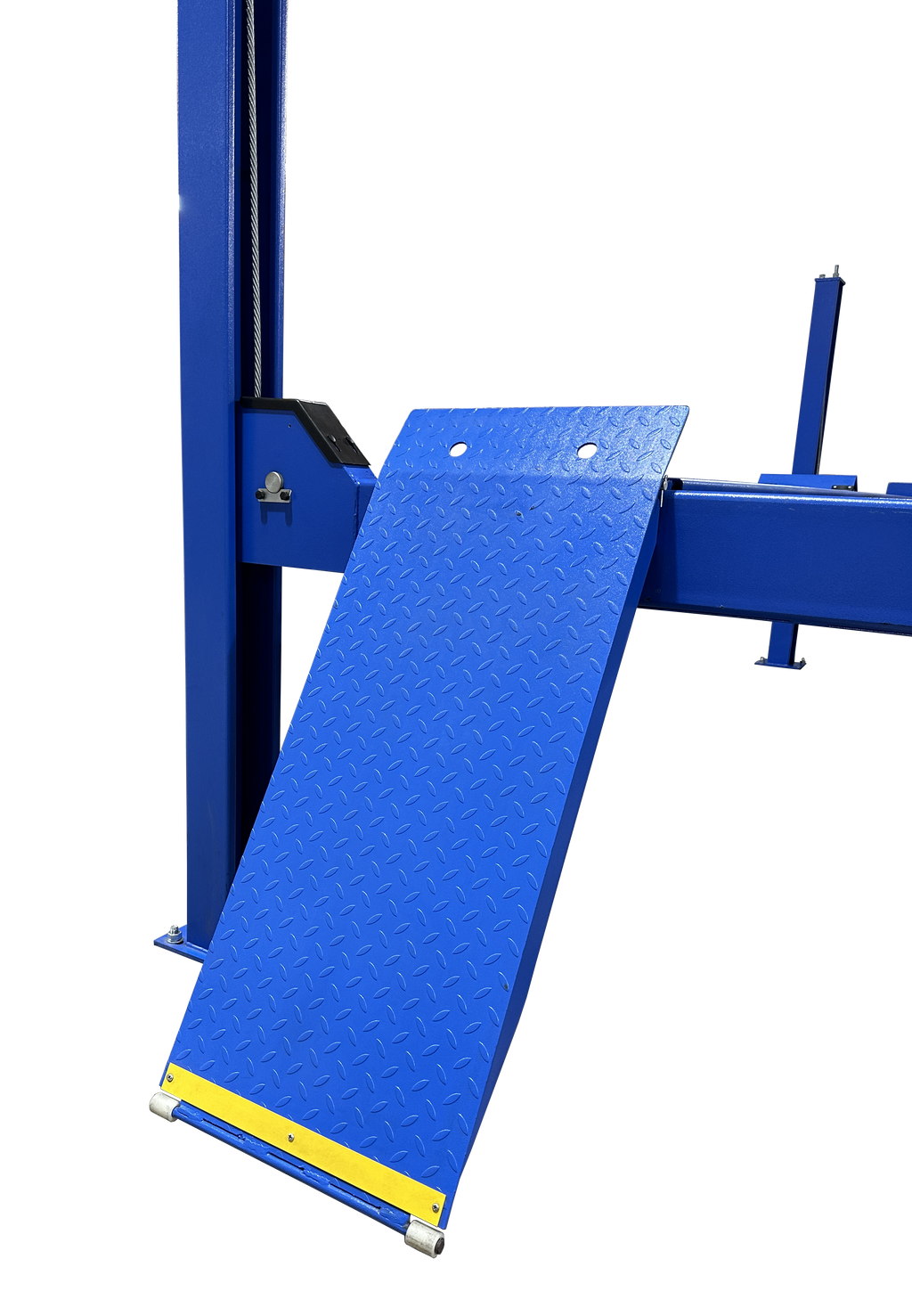

Self-chocking approach ramps with nylon rollers for smooth entry and exit.
-

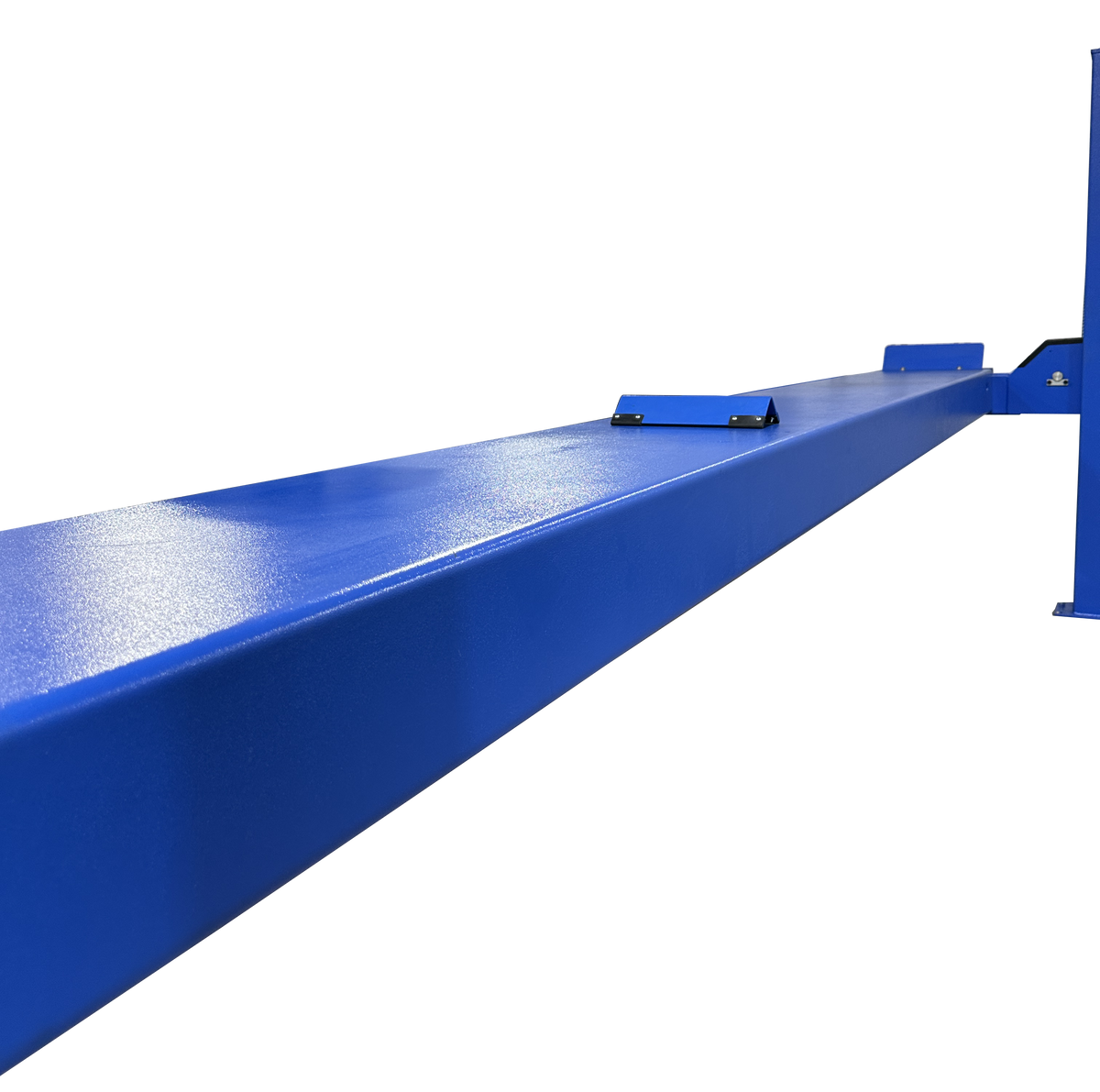

20″ wide runways – adjustable for narrow or wide configurations.
-
Durable powder-coat finish resists corrosion and wear.
-
Includes wheel chocks for added safety and convenience.
-
Backed by a 5-Year Structural / 1-Year Parts Warranty for peace of mind.
|
|
 |

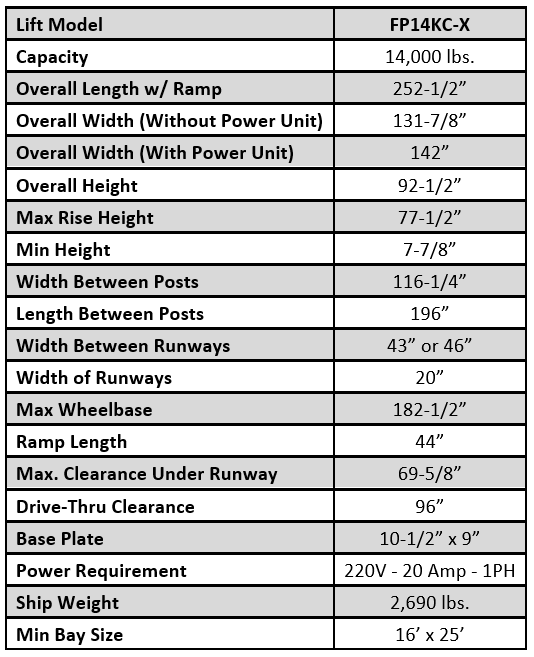

| Product Specifications |
| Lifting Capacity |
14,000 lbs |
| Max Rise Height |
77.5″ |
| Overall Length (with Ramp) |
252.5″ |
| Overall Width (without Power Unit) |
131.9″ |
| Overall Height |
92.5″ |
| Width Between Posts |
116.25″ |
| Runway Width |
20″ |
| Max Wheelbase |
182.5″ |
| Clearance Under Runway |
69.6″ |
| Drive-Thru Clearance |
96″ |
| Ramp Length |
44″ |
| Power Requirement |
220V – 20 Amp – 1 Phase |
| Locking Positions |
18 |
| Shipping Weight |
2,690 lbs |
