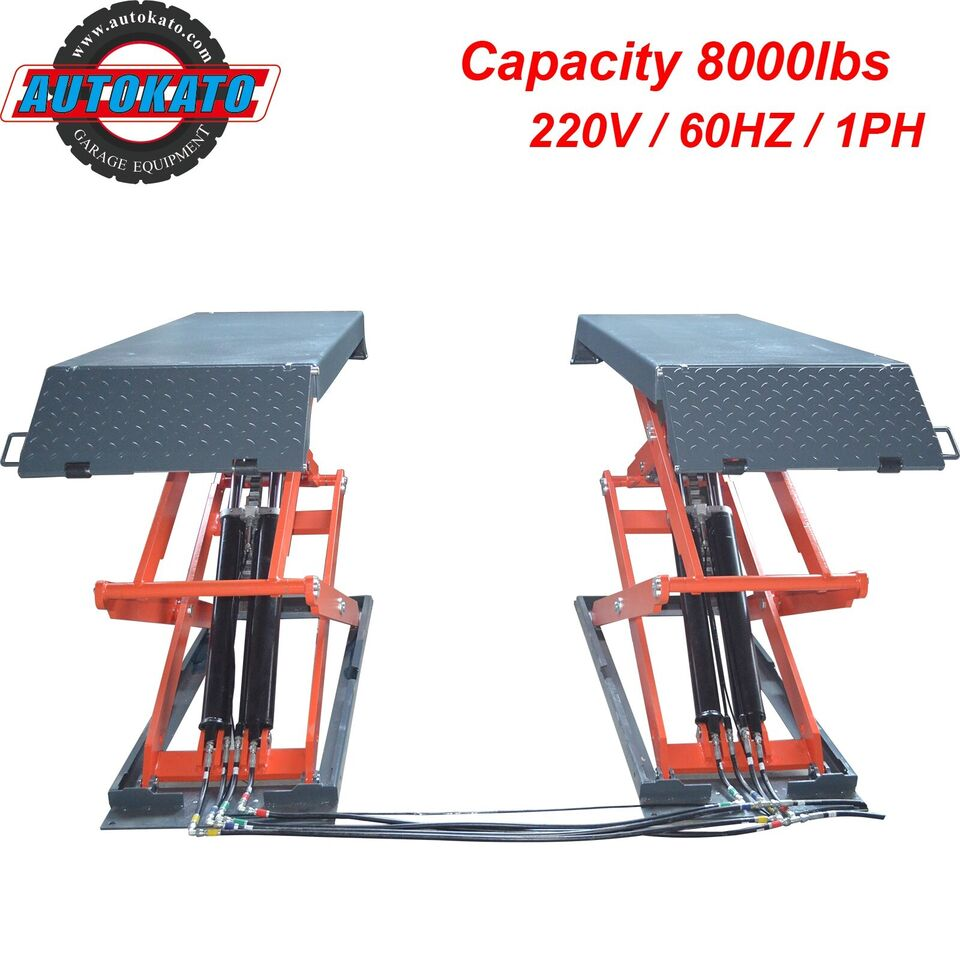

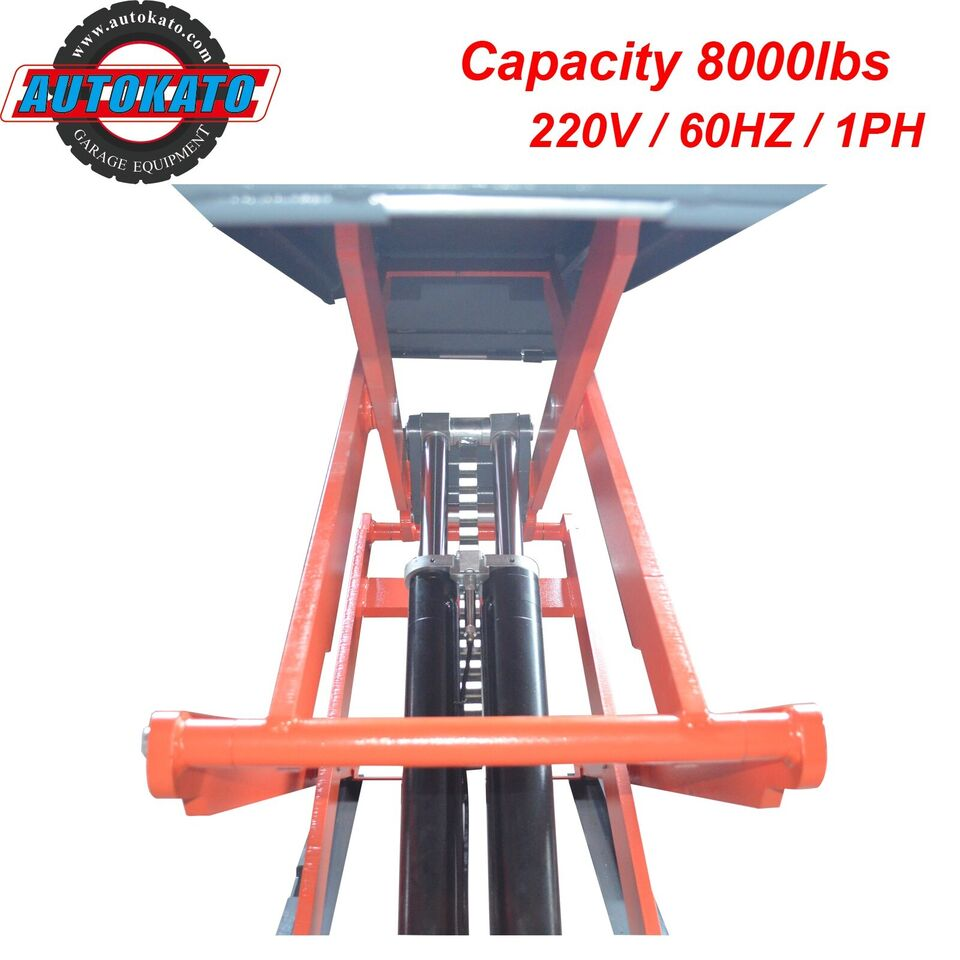

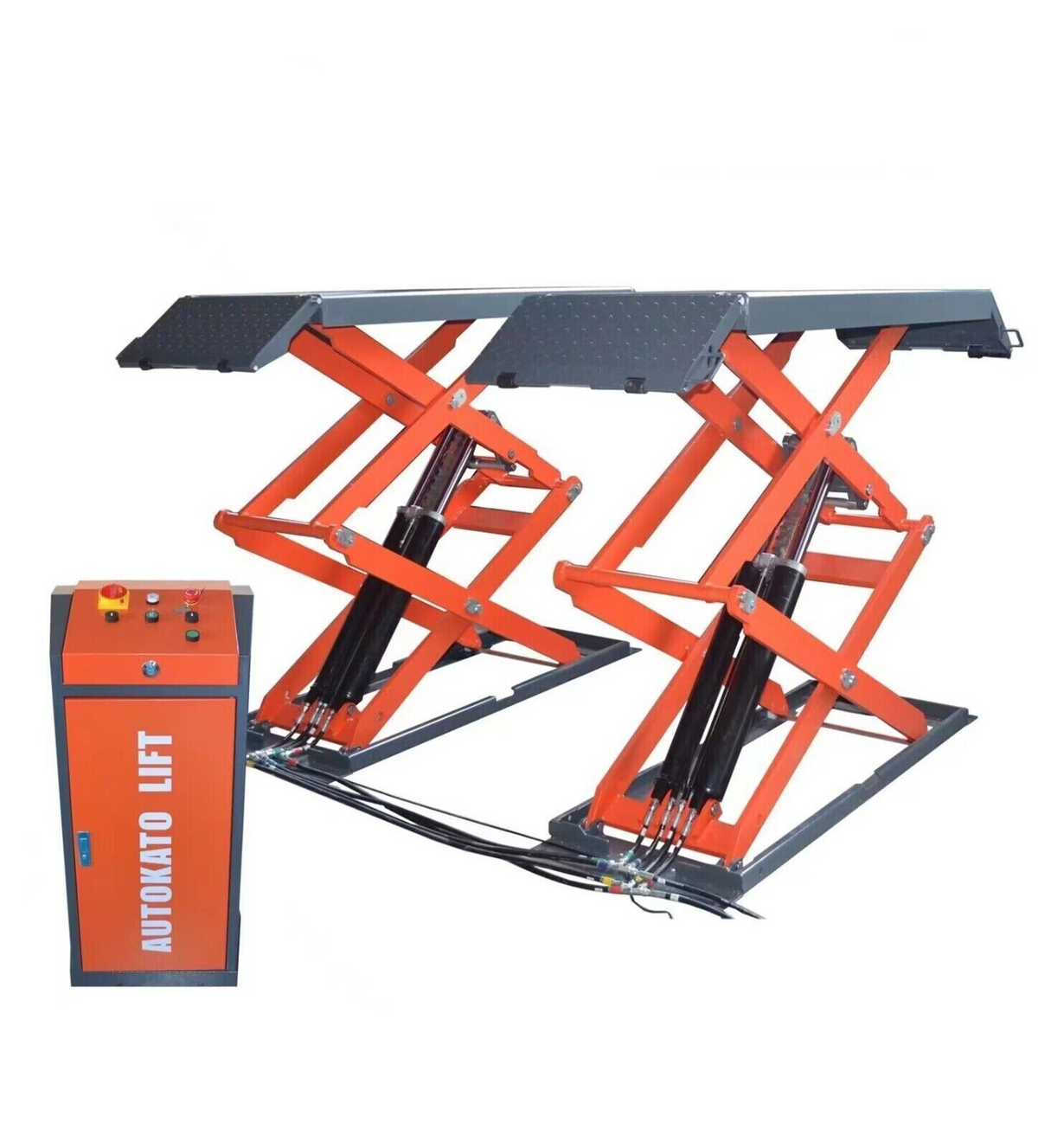

KATOOL KT-X95 8000 lbs. Full-Rise Scissor Lift
Engineered for heavy-duty performance, the KATOOL KT-X95 Full-Rise Scissor Lift delivers exceptional power, safety, and reliability for professional auto shops. With a lifting capacity of 8,000 lbs, this flush-mount lift is ideal for servicing a wide range of vehicles, from sedans to light trucks. The unit is CE Approved and Certified, surpassing rigorous testing standards with 115% dynamic and 150% static load capacity.
The pneumatic safety lock system, 24V low-voltage control, and height limit switch enhance operational safety, while self-lubricating bushings, composite rubber lifting blocks, and a high-efficiency hydraulic system ensure smooth and long-lasting performance. A cooling fan-equipped aluminum motor prevents overheating during extended use. The drive-up ramp lock design extends the platform for longer vehicles, and the unit’s flush-mount profile makes it a sleek and practical solution for shops with space or aesthetic considerations.
Important Installation Note:
This lift must be anchored to concrete at least 5.9" (150mm) thick with a 3000 PSI rating. Improper installation can result in serious injury or equipment failure. Please verify your floor’s specifications before purchasing.
| Key Features |
|---|
| 8,000 lbs (3,500 KG) Lifting Capacity |
| CE Approved – 115% Dynamic / 150% Static Load Tested |
| Flush-Mount Design – Space-saving integration for a clean, low-profile setup |
| Pneumatic Safety Release System |
| 24V Safe Control Voltage System |
| Height Limit Switch & Electric Start-Up System |
| Self-Lubricated Bushings & Durable Components |
| Composite Rubber Lifting Blocks Included |
| Drive-Up Ramp Locks – Extend platform length for longer vehicles |

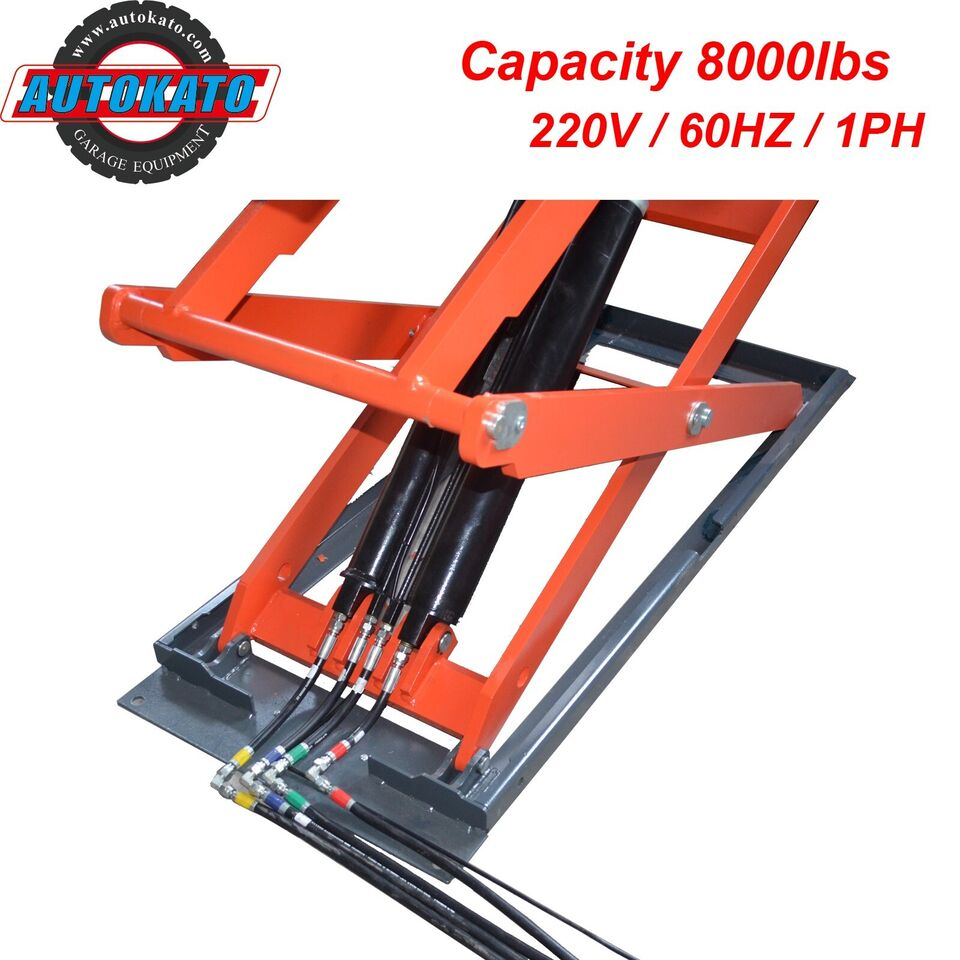

| Premium Hydraulic System – With aluminum motor and built-in cooling fan |
| Requires Compressed Air Source – For pneumatic locks |
|
 |
| Specification | Value |
|---|---|
| Max Lifting Capacity | 8,000 lbs (3,500 KG) |
| Max Lifting Height | 72.3 in (1,835 mm) |
| Lifting Time | ≤ 50 seconds |
| Platform Length | 58.9 in (1,495 mm) |
| Platform Width | 24.4 in (620 mm) |
| Motor Power | 2.2 KW |
| Rated Oil Pressure | 20 MPa |
| Required Air Pressure | 6–8 kgf/cm² (85–115 psi) |
